Beginners guide to Apache Camel with ServiceMix: Part2

This is part 2 of the Beginners guide to Apache Camel with ServiceMix. The first part explained how to set up the environment, to run the examples developed in this post. You can find part 1 here. In this section we will create a Maven project with the camel-spring archetype, change the route with Fuse IDE for Camel, test the route in Eclipse and deploy the route to ServiceMix.


Developing, testing and deploying a simple route
Create Maven project in Eclipse
  • In Eclipse go to File - New - Project...
  • Choose Maven - Maven Project
  • Choose Use default Workspace location and Next
  • Select an archetype
    • Catalog: Fuse Catalog
    • Filter: camel
    • Choose: camel-archetype-spring
    • Next
Click to enlarge
  • Set archetype parameters:
    • GroupId: tutorial
    • ArtifactId: simple_router
    • Version: 1.0.0
    • Package: tutorial.simple_router
    • Finish
Click to enlarge
  • This creates a new Maven project with the following structure. It would be advised to change the name of the camel xml file to something more descriptive (simple-router in this case), as this is the file that will be deployed.

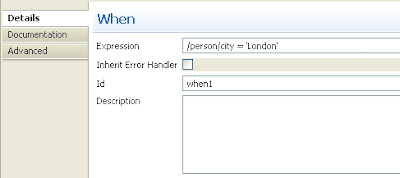

  • If we double click this file we can get a graphical overview of the routing together with the properties of each node. You can change the mapping by deleting nodes, dragging in new nodes and changing the properties of each node.
Click to enlarge

Click to enlarge
Testing the route in Eclipse
  • To test the route click on the root of the project - Run As - Run Configurations.
Click to enlarge
  • Run Configuration:
    • Base directory: Set the base directory to your project root "C:\Documents and Settings\Administrator\workspace\simple_router"
    • Goals: camel:run
    • Run
Click to enlarge
  • If everything succeeds you should see something like this: "Apache Camel 2.6.0 (CamelContext: camel-1) started in 1.421 seconds"
Deploying the route to ServiceMix
Deploying the route to ServiceMix is as simple as copying the camel xml file (spring file) to the deploy directory in ServiceMix.
  • Fire up ServiceMix
    • In cmd change directory to the ServiceMix\bin directory.
    • Execute servicemix.bat
Click to enlarge
  • Copy the "simple-router.xml" file
    • found in this directory C:\Documents and Settings\Administrator\workspace\simple_router\src\main\resources\META-INF\spring
    • ...to the deployment directory directory C:\Program Files\Apache Software Foundation\apache-servicemix-4.3.0-fuse-02-00\deploy
  • To see if the route has been successfully deployed you can use the Apache Felix Web Console.
    • To install the console run the following command in karaf prompt:
      features:install webconsole
    • You can access the Web Console from the following address:
      http://localhost:8181/system/console
    • Use "smx" as default username and "sxm" as default password.
Click to enlarge
Testing the route
  • To see if the route works, drop a file in the ServiceMix\src\data directory.
Click to enlarge
  • Moments later the file should land on the ServiceMix\target\messages target directory (either "uk" or "other" depending on the file content)
Click to enlarge
